| Tile size(s) | Exact sizes |
|---|---|
| special 45° design tiles | 96 x 48 cm |
| special 45° design tiles | 96 x 72 cm |
| special 45° design tiles | 96 x 96 cm |
| special 45° design tiles | 96 x 120 cm |
| special 45° design tiles | 144 x 96 cm |
| special 45° design tiles | 144 x120 cm |
Aluprofile TECHNICAL DATA
ALUTILEMAT MINI PROFILE TECHNICAL DATA
| ALUTILEMAT MINI | Technical data |
|---|---|
| Profile type | Aluminum alloy (AlMgSi 0.5) |
| Aluminum alloy hardness | F25 |
| Profile height | 13 mm |
| Sound isolation thickness on the underside | 2 mm |
| Overall height (insert dependent) | 17-19 mm |
| Profile width | 30 mm |
| Built-in depth | 15 mm with frame |
| Maximum axle load | 1017 kg |
| Tensile strength | 217 N/m |
| Thermal expansion coefficient | 0.0238 mm/m/C |
| Fire safety classification | BFL-s1 |
| Weight with brush insert | 15.07 kg/m2 |
| Weight with rubber insert | 15.80 kg/m2 |
| Weight with textile insert | 13.61 kg/m 2 |
◄ The aluminum modules can be easily cut and adjusted by using a jigsaw.

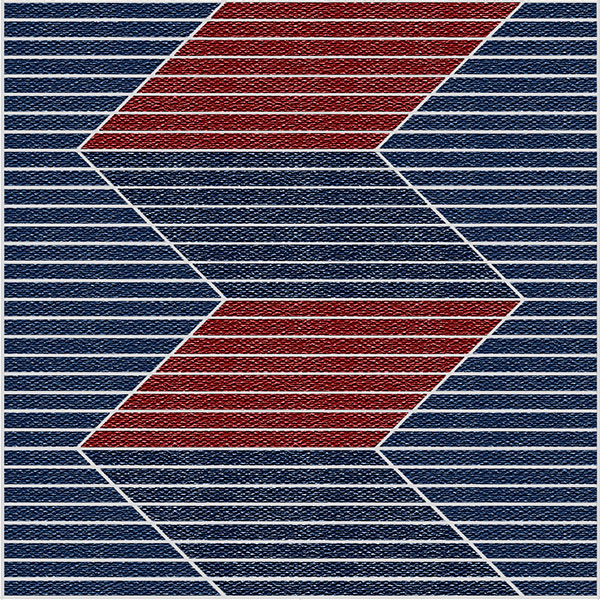

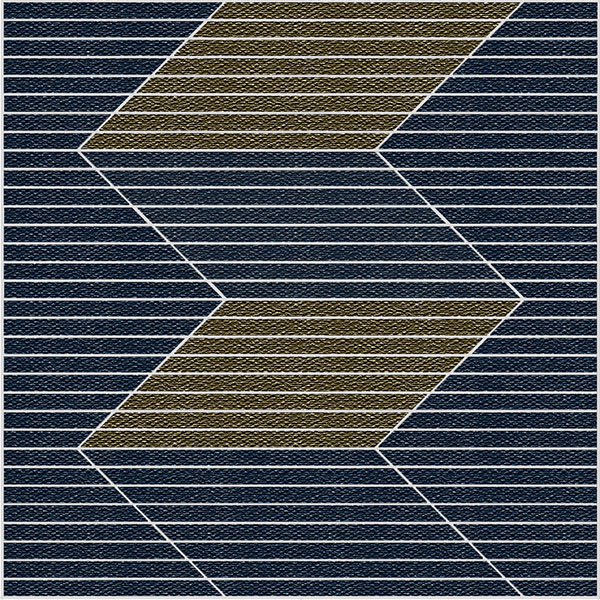

Available standard needlefelt Colours
beige
black
blue
red
NEEDLEFELT TEXTILE TECHNICAL DATA
| Description | Technical data |
|---|---|
| Manufacturing process | Needlefelt |
| Fibre composition | 100 % PP |
| Total weight (~) ISO 8543 | 2150 gr / m2 |
| Pile height ISO 1766 | 4,5 mm |
| Flammability EN 13501-1 | Cfl-s1 |
Available standard Coral Colours
beige
black
blue
red
CORAL TEXTILE TECHNICAL DATA
| Description | Technical data |
|---|---|
| Manufacturing process | Tufted 5/32˝ cut pile |
| Fibre composition | Solution dyed regenerated ECONYL® polyamide |
| Total weight (~) ISO 8543 | 4200 gr / m 2 |
| Pile height ISO 1766 | 5,8 mm |
| Flammability EN 13501-1 | Bfl-s1, G, NCS |
